Enrollment CWP 1.6.1 and later - New User, New Nymi Band, No Band Label

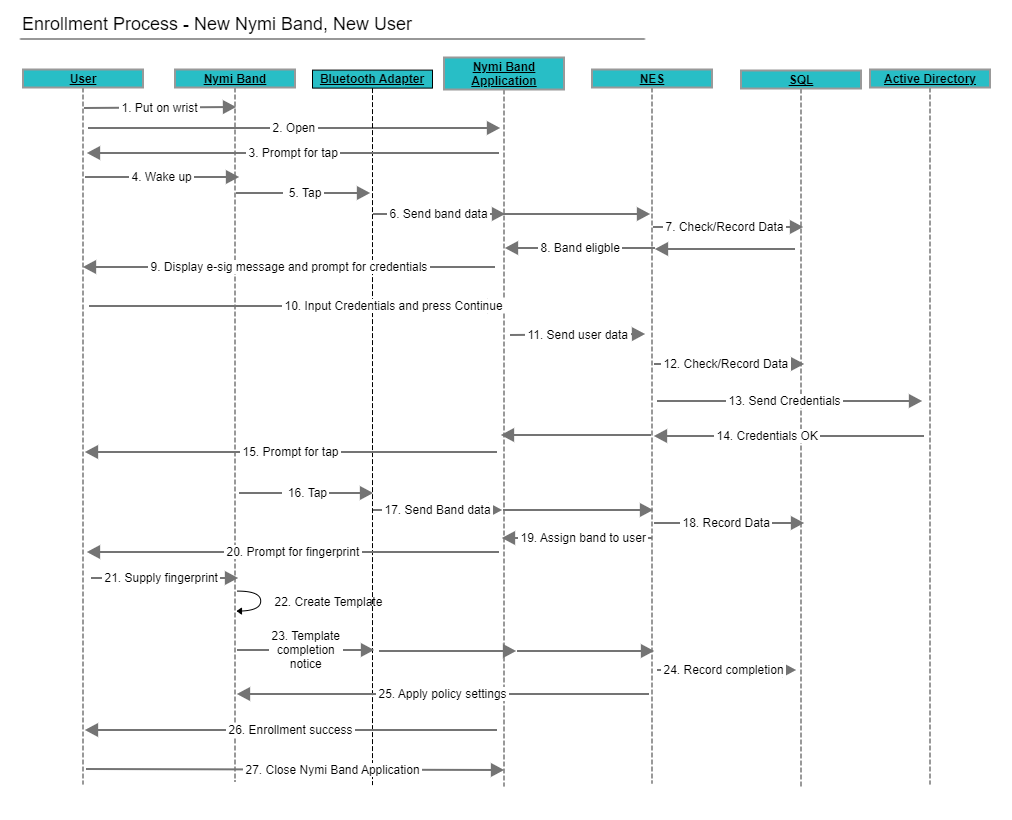

The following sequence diagram provides an overview of the activities that occur during enrollment.  In this diagram:

• Band Label is not enabled in the NES policy
• User that performs the enrollment does not have an active Nymi Band
• Nymi Band is not currently enrolled to another user
