To uniquely identify a user as the owner of the Nymi Band, the enrollment process captures a fingerprint image on the Nymi Band and stores it as a fingerprint template. The fingerprint template never leaves the Nymi Band. The Nymi Band can only be assigned to one individual.

1. Read the information on the Capture Fingerprint page.

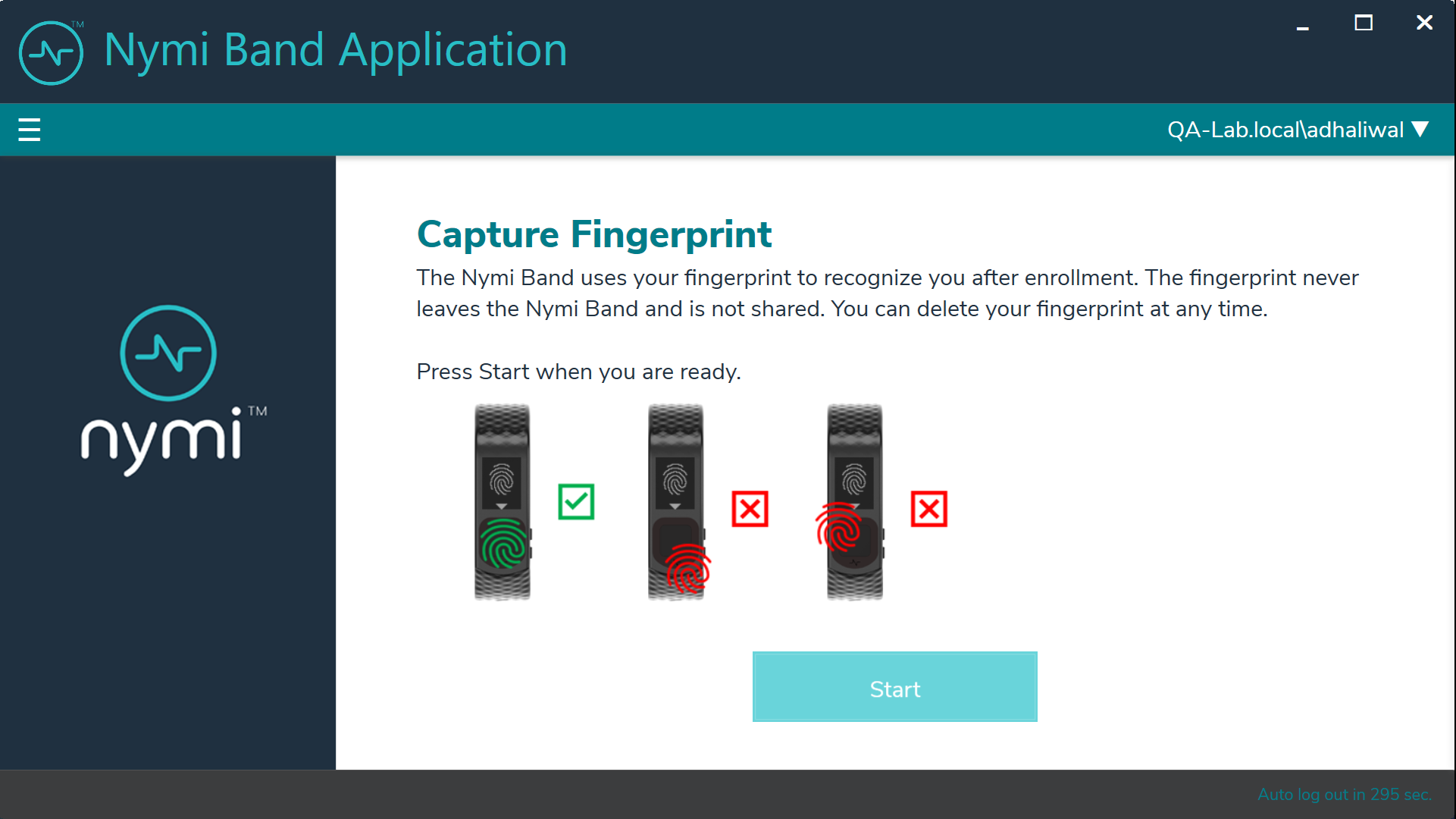

   The following figure provides an example of the Capture Fingerprint page.

   Figure 1. Capture Fingerprint
2. Click Start.

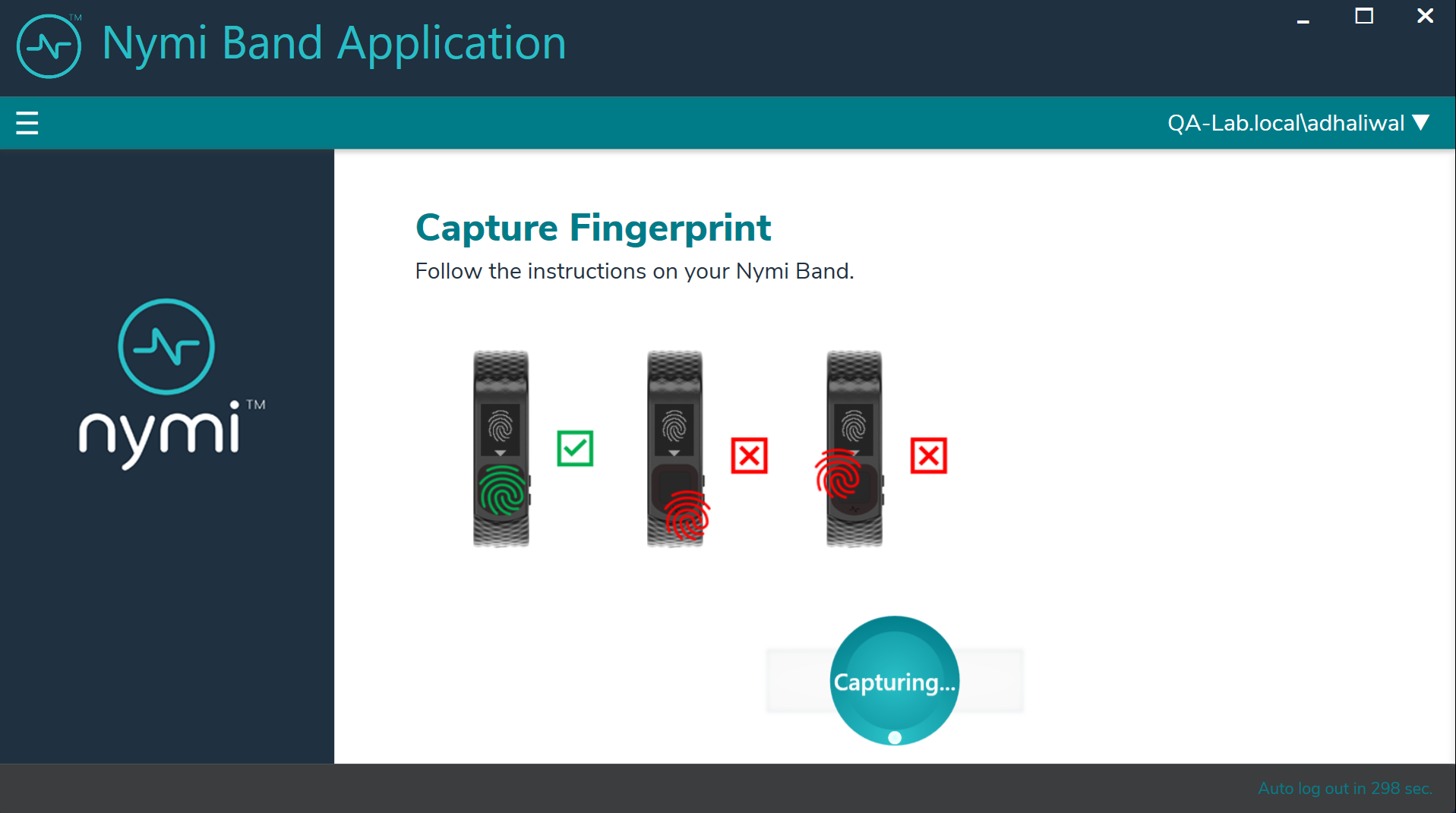

   The following figure provides an example of the Capture Fingerprint page after the user clicks Start.

   Figure 2. Capture Fingerprint In Progress
3. When the Fingerprint icon to appear on the Nymi Band screen, as shown in the following image, place their finger on the fingerprint sensor and the fingerprint bezel that surrounds the sensor.
   Figure 3. FINGERPRINT
4. When the LIFT FINGER message appears on the screen, lift their finger from the sensor and bezel.
   When the TOUCH SENSOR message appears on the screen, place their finger on the sensor and bezel.

   The following figures show the LIFT FINGER and TOUCH SENSOR messages.

   Figure 4. LIFT FINGER

   Figure 5. TOUCH SENSOR
5. Repeat the steps to lift their finger and touch the sensor and bezel, as prompted.

   The fingerprint process evaluates and captures 15 images of the fingerprint, and then performs one of the following actions:

   • If the process determines that the images that were captured are acceptable to creates a template, then the Nymi Band creates a securely-stored mathematical template of the image, and then deletes the images.
   • If the process determines that the images that were captured are acceptable to creates a template, then the Nymi Band deletes all images and requires the user to repeat the fingerprint capture process.
   • If the process is unable to create a template after three attempts, the process fails and the Nymi Band displays See Admin. In this situation, you must perform a delete user data operation on the Nymi Band, disassociate the Nymi Band from the user in the NES Administrator Console, and then repeat the enrollment process with a different Nymi Band or different finger.
     Note: Nymi Band User Management provides detailed information about how to delete the user data ad disassociate the Nymi Band from the user.
